Replacement electric fireplace inserts

Measure the opening in your furniture four ways — width, height, depth, and the flat area around it for the insert's front lip — and buy to those numbers rather than to the size printed on the listing. Most inserts are wider than their name suggests; one on this page is sold as 23 inches and has a 25-inch body. Then check one thing more: some products sold as replacement inserts are free-standing fireboxes that their own manufacturers say must not be trimmed into a cabinet at all.

Search for a replacement insert and the results mix two things that install in incompatible ways. One is a trim-in insert: a shallow box you fasten into a cutout, venting through its own front face, with a lip that covers the gap between the box and the hole. The other is a drop-in firebox: a deeper, free-standing unit designed to sit inside a mantel or surround, often needing clearance behind it.

Listings almost never use those words. What separates them is a line in the installation specification — and it is worth finding before you order, because the two are not interchangeable in either direction.

You are not choosing a size here — the size was chosen for you when the furniture was built. Take all four before you open a single listing.

1. Width of the opening at its narrowest point. Cabinet sides are rarely perfectly parallel, and the narrow end is the one that decides whether the unit goes in.
2. Height of the opening, measured at the front and again at the back of the cavity, because some consoles taper toward the rear.
3. Depth from the front face to whatever is behind it — back panel, cable cut-out, or the wall. This is the measurement that eliminates the most products.
4. The flat area around the opening. Almost every insert has a face wider and taller than its body, and that lip is what hides the gap. If there is only half an inch of flat surface above the hole, a unit with a two-inch lip has nowhere to land.

The fourth is the one people forget, and it is the one that turns a finished job into a visible seam. It is also why a replacement that is slightly too small is usually recoverable and one that is slightly too large is not — a gap can be covered, but material you have already cut away cannot be put back. Trim kits sets out how much gap is actually coverable.

Nominal sizes in this category are marketing categories, not measurements. A unit sold as 23 inches may measure 23 inches or it may measure 25, and nothing in the listing title tells you which. We have written about this at the most common size on 30-inch inserts, where the gap between the name and the body is routinely three inches or more. For a replacement it matters far more than it does for a new build, because there is no opportunity to cut the hole to suit.

Quick picks: replacements that fit a cutout

Ranked. The running cost column is computed from each unit's rated wattage, not quoted from a manufacturer. Tap a row for the full write-up.

#	Product	Best for	Cost per hour	Price

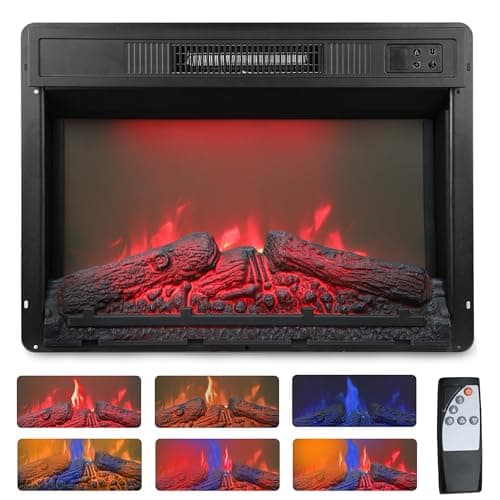

1	RoyalCraft 23" Recessed Insert (ZEP001)The cheapest honest fit for a 23-inch opening, five inches deep with a CSA listing — and a BTU claim that does not follow from its own wattage.	The most common console cutout	25.7¢1,400 W · 4,777 BTU	$102.99 · View on Amazon
2	Tangkula 23" Infrared Quartz Recessed InsertAn infrared element the manufacturer rates for 1,000 square feet, in a body no deeper than the RoyalCraft — but it is sold as 23 inches and measures 25.	The most heat through a similar opening	27.5¢1,500 W · 5,118 BTU	$139.99 · View on Amazon

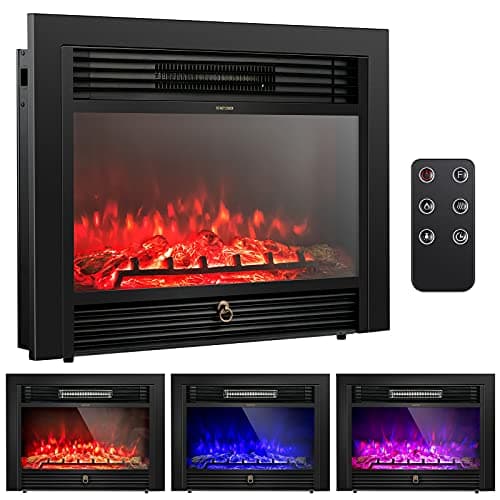

3	Tangkula 28.5" Recessed Insert (EF-30D)Six inches deep and 28.5 wide for the larger consoles, with the only genuine half-power mode here — and no safety certification named anywhere.	A wider opening, and a real low setting	27.5¢1,500 W · 5,118 BTU	$159.99 · View on Amazon

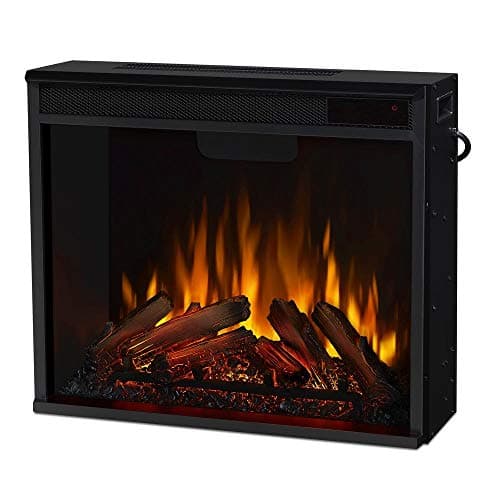

—	Real Flame 4199 VividFlame Electric FireboxSold as a Replaceable Electric Fireplace Heater Insert. Real Flame's own specification says it must not be mounted or trimmed in.Skip this one	Nothing you are trimming into a cabinet	27.5¢1,500 W · 5,118 BTU	$281.68 · View on Amazon

#ad Buy links are affiliate links — we earn a commission on Amazon purchases at no extra cost to you, and it never changes the ranking. How this site is funded. Running cost is computed at 18.34¢/kWh; see what these actually cost to run.

The heat. A 120-volt household circuit caps every unit on this page at 1,500 watts, which is about 5,118 BTU per hour, and that ceiling applied to the insert you are taking out as well. If the old firebox never warmed the room, the new one will not either — the limit is the outlet, not the appliance.

What a replacement genuinely can change is how the heat is delivered and how the fire looks — an infrared element warms objects rather than air, and a decade of LED development separates a 2016 firebox from a 2026 one. Neither of those is more energy. Do they actually heat a room? has the unflattering version, and the running cost calculator will price any of these against your own tariff.

A fair number of fireboxes replaced every winter were working. Three checks cost nothing and take ten minutes.

1. Try a different circuit. Fireplace consoles usually sit on the same circuit as the television and everything else in that corner, and a 12.5-amp heater trips breakers that a television never will.
2. Check the thermostat rather than the switch. Most inserts cut the heater once the room is already above the set temperature, and give no indication that this is the reason.
3. Look for a manual reset. Many units have an overheat cutout with a reset button, commonly on the underside or behind the lower trim.

If the flame is out but the heater still runs, the fault is in the light source rather than the appliance, and that is a different repair. Our troubleshooting guide works through the usual failures in order.

1. Write down all four measurements — width, height, depth and the flat area around the opening — before you start shopping.
2. Compare them to the published body size, never to the size in the product name.
3. Confirm the manufacturer permits trimming in. If the specification asks for rear airflow or says the unit must not be mounted, it is not a replacement for a cabinet cutout whatever the title calls it.
4. Check what else is on the circuit. A 1,500-watt insert draws 12.5 amps, which is most of a 15-amp breaker — watts, amps and your circuit covers the arithmetic.
5. If the new unit is narrower than the hole, plan the gap now rather than after it arrives. Trim kits explains where a kit works and where it does not.
